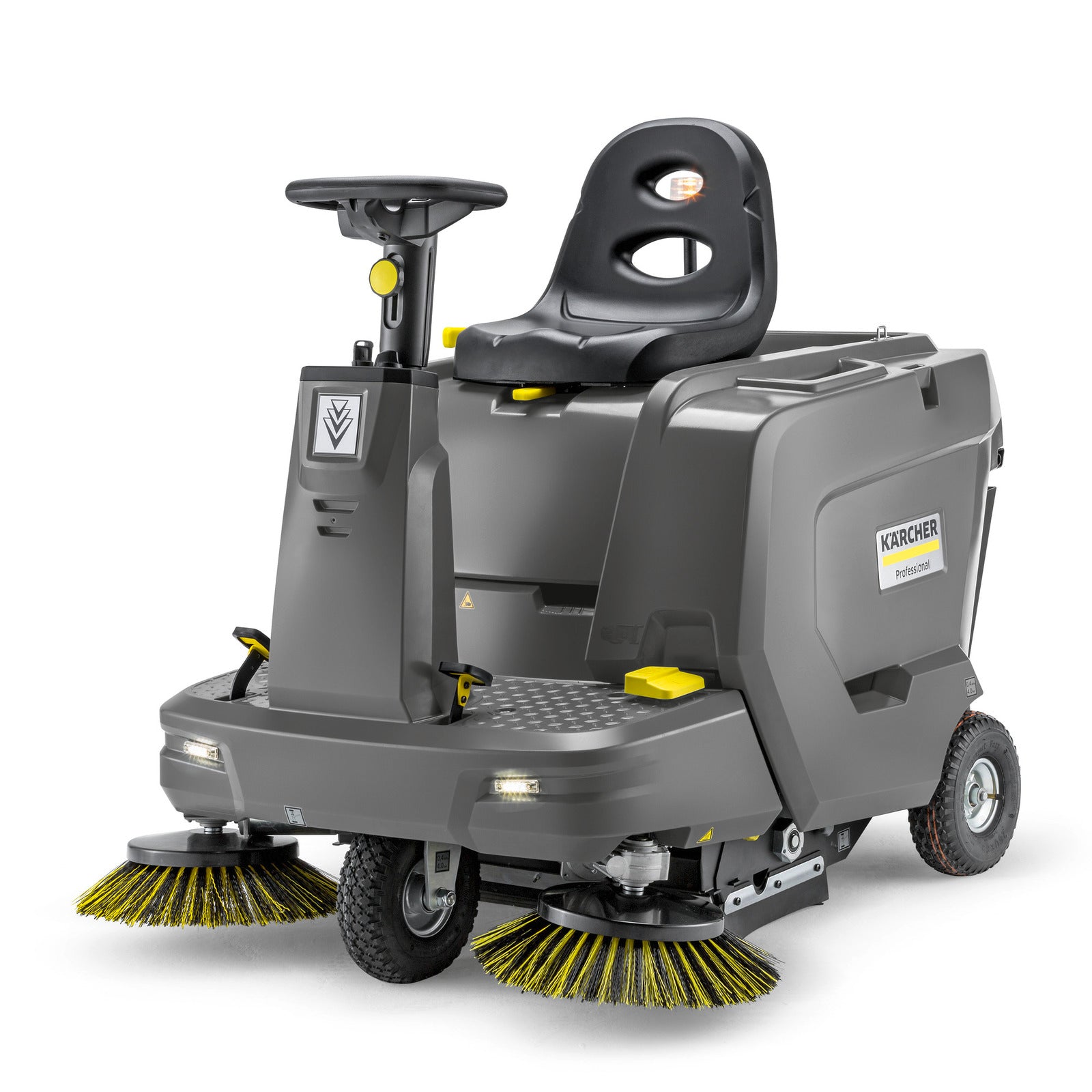

Our compact and manoeuvrable ride-on vacuum sweeper KM 85/50 R Bp Pack comes as standard with 2 side brushes, battery and battery charger and impresses with a high area performance.
Compact, outstanding equipment, easy to operate and very affordable: our ride-on vacuum sweeper KM 85/50 R Bp Pack impresses in all respects. The small size of this entry-level model also makes the machine ideal for work in narrow, congested spaces, whereas it impresses in the indoor and outside area with a high area performance and can demonstrate its strengths with confidence. Two swerving side brushes with speed regulation – on the right and left of the machine –, a large dust filter for dust-free work, a wear indicator on the main sweeper roller that is visible on the outside, as well as a battery and battery charger, come as standard. The oscillating roller does not have to be readjusted and yet still removes dirt leaving no residue also on uneven ground. Maintenance work can be easily completed. For instance, the dust filter can be conveniently cleaned from the seat and the main sweeper roller can be changed without the need for any tools. The wide-opening machine hood allows convenient access to internal components. Thanks to the intelligent Home Base system it is also possible to carry along additional cleaning utensils.
TECHNICAL DATA
|
Traction drive
|
DC motor
|
|
Drive – Power (V/W)
|
24 / 1000
|
|
Drive type
|
Electric
|
|
Max. area performance (m²/h)
|
6510
|
|
Max. area performance with 2 side brushes (m²/h)
|
6510
|
|
Working width (mm)
|
615
|
|
Working width with 1 side brush (mm)
|
850
|
|
Working width with 2 side brushes (mm)
|
1085
|
|
Battery capacity (Ah)
|
115
|
|
Battery voltage (V)
|
24
|
|
Battery runtime (h)
|
max. 2.5
|
|
Waste container (l)
|
50
|
|
Climbing ability (%)
|
12
|
|
Working speed (km/h)
|
6
|
|
Filter area (m²)
|
2.3
|
|
Payload (kg)
|
max. 90
|
|
Weight (with accessories) (kg)
|
257.1
|
|
Weight, ready for operation (kg)
|
238
|
|
Weight incl. packaging (kg)
|
259.1
|
|
Dimensions (L × W × H) (mm)
|
1350 x 940 x 1170
|
Equipment
- Manual filter cleaning
- Mechanical filter cleaning
- Main sweeper roller, floating
- Suction volume regulation
- Coarse dirt flap
- Overhead sweeping principle
- Traction drive, forwards
- Traction drive, reverse
- Suction
- Outdoor use
- Indoor use

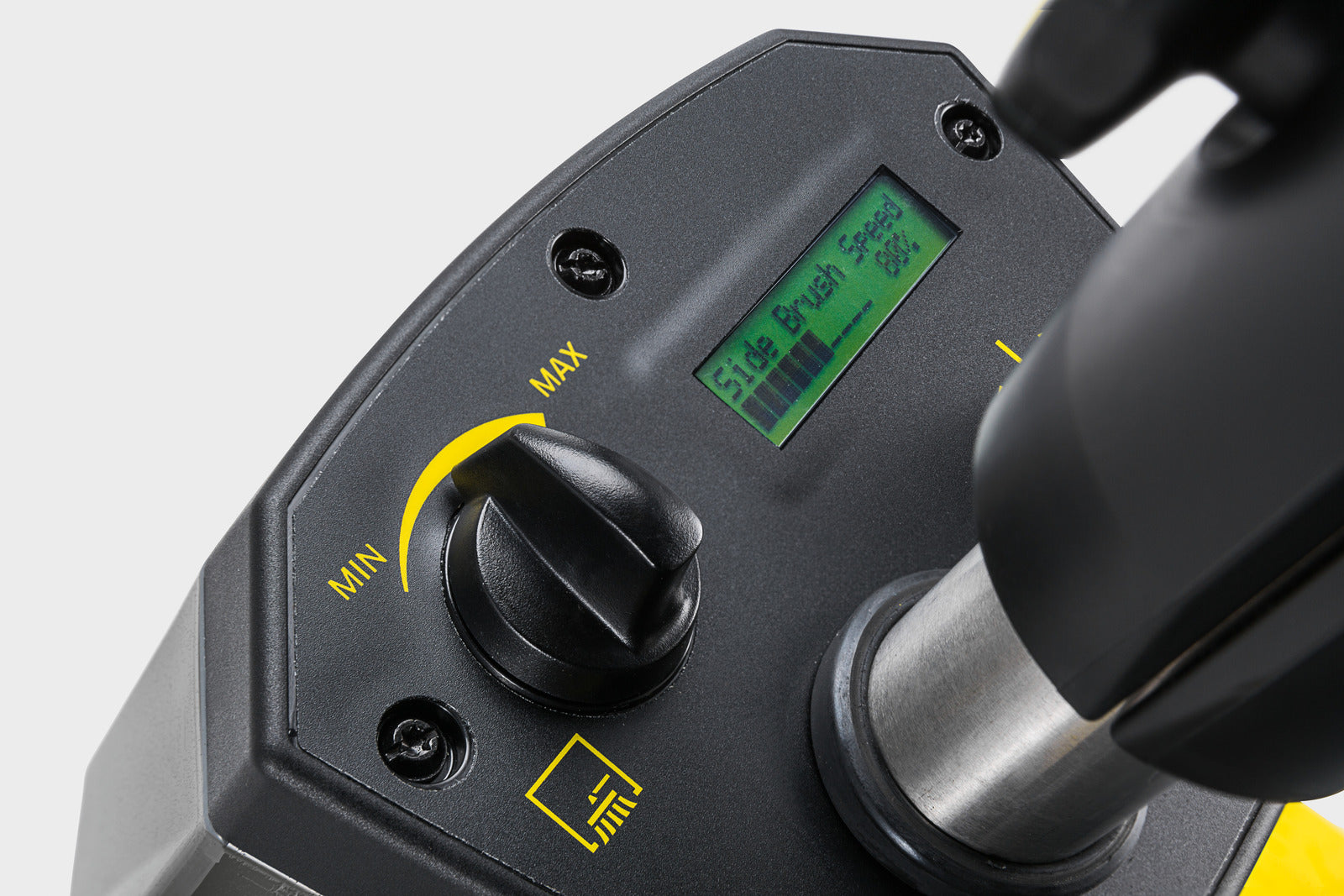

- Side brush speed, adjustable
- Battery indicator
- Elapsed time counter
- Waste container, mobile
- Sweeping function, can be switched off
- Side brush, automatically swings out
- Automatic wear adjustment of the main sweeper roller
- Multifunction display
- Home Base fastening possibility
Application Areas
- Ideal for cleaning production halls, warehouses and smaller logistics halls
- For rapid maintenance cleaning in car parks
- Also suitable for workshops, schools, service stations or car dealerships
Features and Benefits
Clever container concept
2 tanks for simple removal and safe emptying of waste. Waste container free of rough edges permits emptying without leaving behind any residues. Castors on waste container simplify handling when emptying.
Efficient filter system
Polyester flat pleated filter. Effective cleaning with dual scraper. Comfortable operation from operating position. Access to the filter through wide-opening cover without the need for any tools.
Clever ergonomics for high level of comfort at workplace
Clear and ergonomic attachment of operating elements. Adjustment of driver's seat without the need for any tools. Height-adjustable steering wheel.
